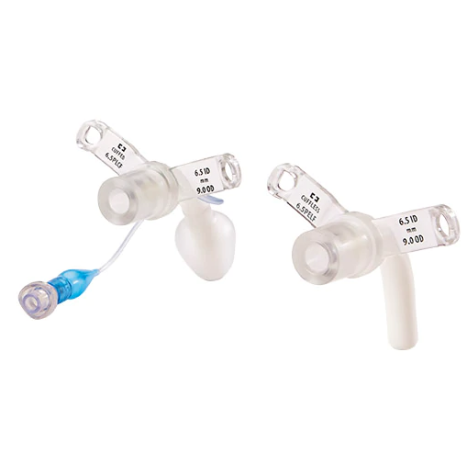

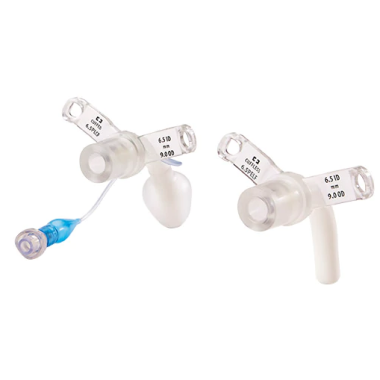

Shiley Neonatal and Pediatric Tracheostomy Tubes - Cuffless & Cuffed

Who Uses This Product? Neonatal and pediatric patients who require a trach tube as an alternative airway for breathing or ventilation.

Why Give It a Try? The newly designed Shiley flex trach tube increases patient comfort and makes tracheostomy care easier for clinicians.

Medtronic Shiley Neonatal and Pediatric Tracheostomy Overview

Shiley Neonatal and Pediatric Flexible Tracheostomy Tubes have a lower-profile flange angle than the adult trach to accommodate smaller anatomy. The flex tube is redesigned to improve patient care. The Shiley Flex tube allows for ventilation with or without the disposable inner cannula to reduce airway resistance. The clear flange creates an inspection window for clinicians to view the stoma site and surrounding skin. The new trach tube is made from safe non-DEHP PVC material with a plasticizer additive for a softer and more flexible product. This change increases wearing comfort with less friction against the stoma. Choose from Shiley Pediatric Tracheostomy Tube cuffless and cuffed options to support a variety of patient needs. A complete list of Shiley flex trach improvements is found below, including a new color-coding system to help clinicians identify the corresponding inner cannula. Each design advancement is clinician-inspired to improve care for ventilator-dependent patients.

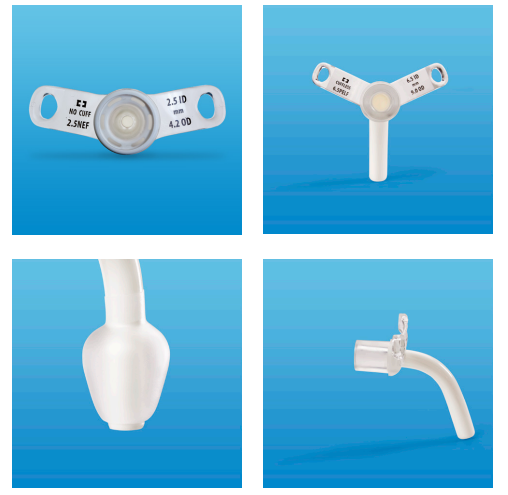

Shiley Flex Trach Tube Enhancements

(1) Flange Distinction
The flange designates if it is for a neonatal or pediatric patient to make selection easier for clinicians.

(2) Comfort Recess
The newly designed Shiley tracheostomy tubes are designed with a recess on the backside of the flange to reduce skin contact with air vents and create airflow around the stoma site. The Tape Tie Recess simplifies the insertion of either a tube holder or tape tie.

(3) TaperGuard Cuff Design
When selecting a trach tube with a cuff, the newly designed TaperGuard Cuff replaces the barrel-shaped cuff to offer a better air and fluid seal with less bulk. The TaperGuard Cuff has a low intracuff pressure which reduces fluid leakage and the removal force to minimize stoma irritation or trauma.

(4) Soft Flange Material and Transparent Color
Softer flange material increases patient comfort. The transparent material means clinicians have an enhanced view of the underlying skin and stoma site.

Additional Design Benefits

Expanded Size Options With Color Coding
The Shiley Pediatric Tube sizes have expanded size options to find the best fit for both pediatric and neonatal patients. There are also varying flange angles to ensure a better fit as the child grows. The color-coding by size helps clinicians choose the correct disposable inner cannula for the corresponding tube.

Improved Connector Design
The 15mm hub connector expands options for ventilating a patient without requiring an inner cannula. The connector has a comfort recess located on the bottom of the connector to reduce pressure and irritation on the stoma.

Related Products

• Tracheostomy Sterile Brushes remove debris and dry mucus buildup in the trach tube.
• Posey Foam Trach Collar Ties offers a pillow-like surface to hold the tracheostomy tube or oxygen cannula in place.
• Trach StomaShield Cover shields the stoma when showering without obstructing breathing.

Frequently Asked Questions (FAQs)

What is the difference between a cuffed and uncuffed trach?
Shiley Pediatric Trach Tube Cuffed is used on patients who are at risk of aspiration. The cuff allows for secretion clearance with positive pressure.

Are both of the Shiley Tracheostomy Tubes available?
The original style will be phased out after inventory is depleted.

How often is the Shiley tracheostomy tubed changed?
The manufacturer recommends changing the trach tube every 29 days.

Are Shiley Pediatric Trach Tubes MRI compatible?
No, they are not MRI compatible due to the internal spring that creates support.

Products Specifications

• Manufacturer: Medtronic
• Brand: Shiley
• Neonatal Product Numbers (Cuffless): 2.5NEF, 3.0NEF, 3.5NEF, 4.0NEF, 4.5NEF
• Pediatric Product Numbers (Cuffless): 3.5PEF, 4.0PEF, 4.5PEF, 5.0PEF, 5.5PEF, 5.0PELF, 5.5PELF, 6.0PELF
• Pediatric Product Numbers (Cuffed): 4.0PCF, 4.5PCF, 5.0PCF, 5.5PCF, 5.0PLCF, 6.5PLCF
• Material: PVC
• Color: White With Clear Flange
• DEHP-Free: Yes
• Latex-Indicator: Latex-Free
• Sterility Indicator: Serile

Manuals and Documents

• Brochure shows the design features of the new TaperGuard Cuff technology and ordering information.
• Quick Reference Guide provides a quick reference of features and specifications.

Product Video

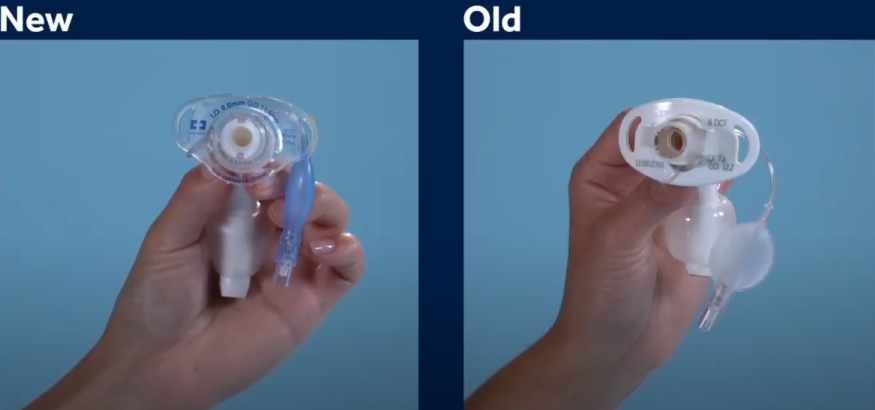

Differences between Shiey Flex and Shiley Legacy Video (2:51 minutes)
