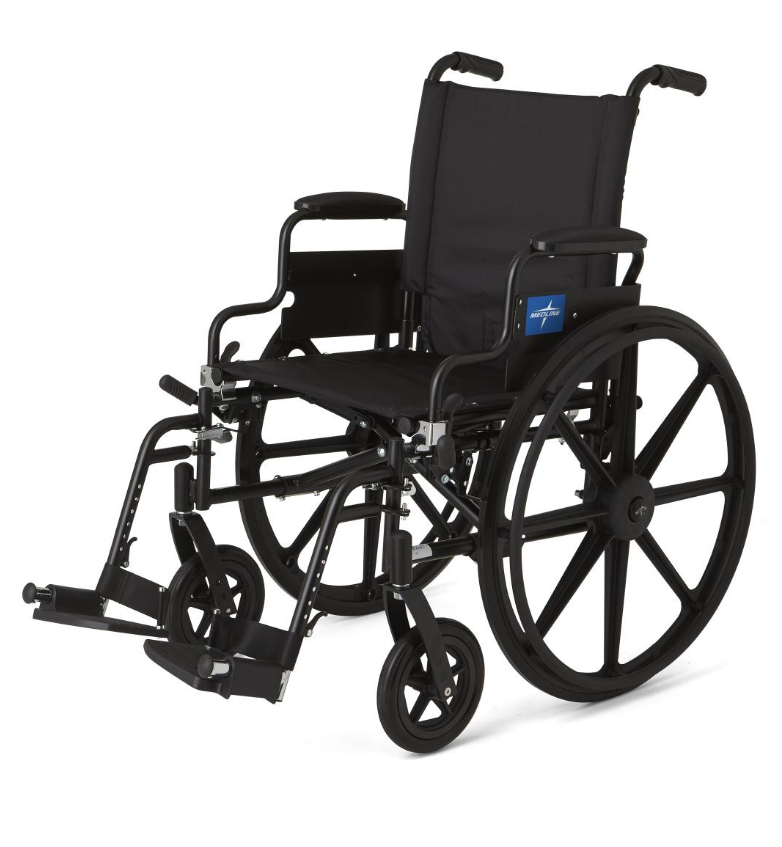

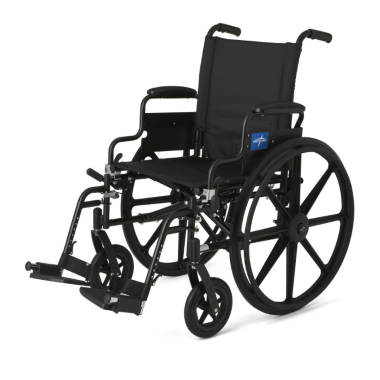

Medline Ultra-Light Wheelchair Features & Selections
|
or Legrest |
|
|
---|
Ultra-Light Wheelchairs

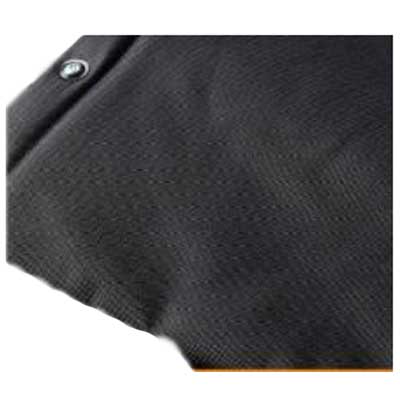

Medline K4 Ultra-Light Wheelchairs come in many different styles with different accommodations. The height is adjustable with an adjustable-height back panel and features swing-back arms with an easy flip-back release. The armrests and calf pads are padded and the whole chair is done up in a tough nylon upholstery. The dual axle hemi-height mechanism allows for the height adjustment as well as tool-free removal of the rear wheels for storage or transportation purposes.

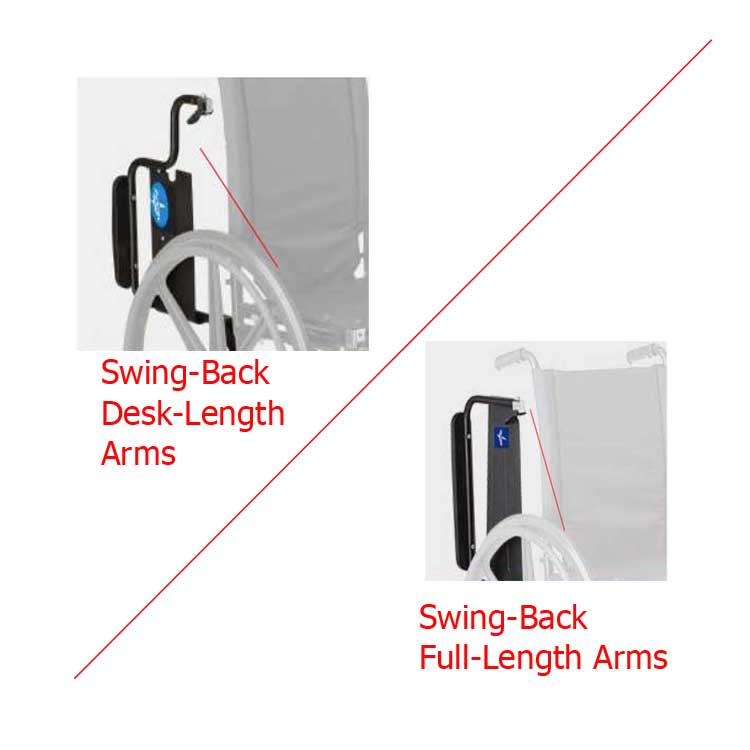

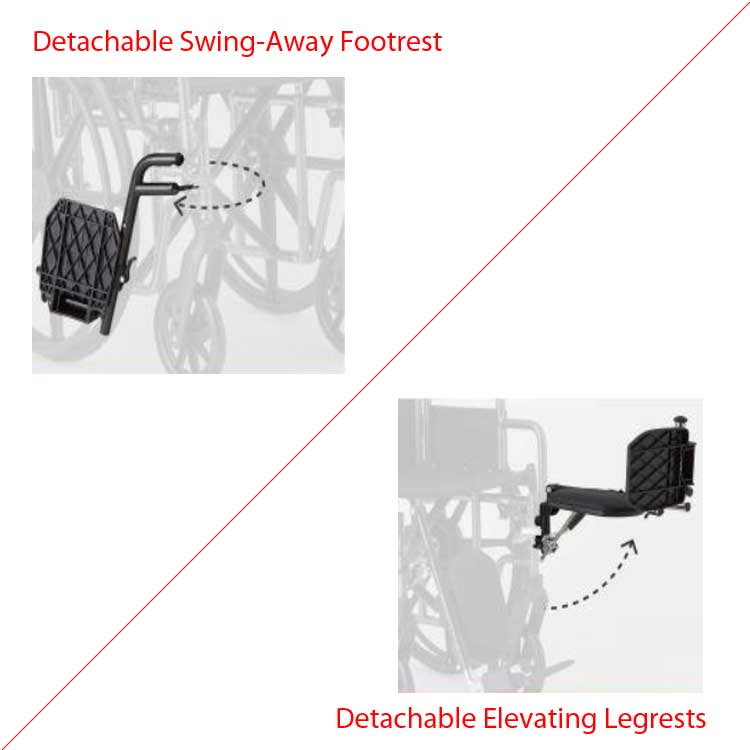

Choose from removable desk-length arms, which tuck under desks or tables, or full-length arms that extend to the edge of the seat. Also choose between elevating legrests, which include pads behind the calves to elevate the legs, or the swing-away footrests, which allow the wheelchair to be used more like a standard chair.
If you are looking for an easy-to-clean and maintain wheelchair, you may want to check out the Durable and Easy Cleaning Wheelchairs, which come with vinyl upholstery.
Medline Ultra-Light Wheelchair Exposed

Product Features and Benefits
- Swing-Back Arms with Easy Flip-Back Arm Release
- Dual Axles Hemi-Height Adjustable with Height-Adjustable Back
- Tool-Free Removal of the Rear Wheels
- Lightweight Construction
Product Specifications
- Product Numbers: MDS806500 (18 Inch with Desk-Length Arms and Swing-Away Footrests), MDS806500E (18 Inch with Swing-Away Footrests), MDS806500N (18 Inch with Full-Length Arms and Swing-Away Footrests), MDS806500NE (16 Inch with Swing-Away Footrests), MDS806550 (18 Inch with Desk-Length Arms and Elevating Legrests), MDS806550FLA (18 Inch with Full-Length Arms and Elevating Legrests), MDS806550N (16 Inch with Desk-Length Arms and Elevating Legrests).
- Manufacturer: Medline
- Seat Width: 18 Inches or 16 Inches
- Seat Depth: 16 Inches
- Weight: 31.5 Pounds
- Weight Capacity: 300 Pounds
- Color: Black
- Seat & Back Material: Nylon
- UNSPSC Code: 42192210
How to Select the Best Wheelchair

Getting the Best Wheelchair Fit
Medline Wheelchair Comparison Chart
In the comparison chart below, the Premium Ultra-Light Wheelchairs are located in the seventh column and are classified as K4 Lightweight Wheelchairs. These models offer a choice of arm styles, a choice of footrests or elevating legrests and seat widths of 16 to 18 inches.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Wheelchair Types | Strong & Sturdy |
Comfort Driven | Excel 2000 |
Durable Easy to Clean |
Lightweight User Friendly |
Premium Ultra-Light |
Extra-Wide Heavy Duty |
Hybrid 2 |
Classification | K1 | K1 | K1 - K2 | K2 | K3 - K4 | K4 | K7 | K4 |
Seat Width (Inch) | 16, 18 | 20 | 16, 18, 20 | 16, 18 | 16, 18, 20 | 16, 18 | 20, 22, 24 | 16, 18 |
Seat Depth (Inch) | 16 | 16 | 16 | 16 | 16, 18 | 16 | 18 | 16 |
Adjustable Seat Back Height | No | No | No | No | Yes | Yes | No | No |
Weight (lbs.) | 38 | 38 | 35 | 38 | 33 -35 | 31.5 | 58 | 33 |
Weight Capacity (lbs.) | 300 | 300 | 300 | 300 | 300 | 300 - 350 | 500 | 300 |
Arm Style | - desk-length - full-length |
desk-length | - desk-length full-length |
desk-length | flip-back desk-length | - flip-back desk-length - flip-back full-length |
desk-length | - desk-length |
Leg Style | - swing-away footrests - elevating legrests |
- swing-away footrests - elevating legrests |
- swing-away footrests - elevating legrests |
- swing-away footrests - elevating legrests - fixed footrests |
- swing-away footresst - elevating legrests |
- swing-away footrests - elevating legrests |
- swing-away footrests - elevating legrests |
- swing-away footrests - elevating legrests |
Upholstery | nylon | nylon | vinyl | vinyl | nylon | nylon | vinyl | nylon |
Folding | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Other Features | - tig-welded frame with gray powder coat | - adjustable seat height | - quick-release wheels - hemi-height adjustable |
- carbon steel frame with rust- and chip-resistant chrome plating - chart packet on back |
- combo wheelchair & transport chair |

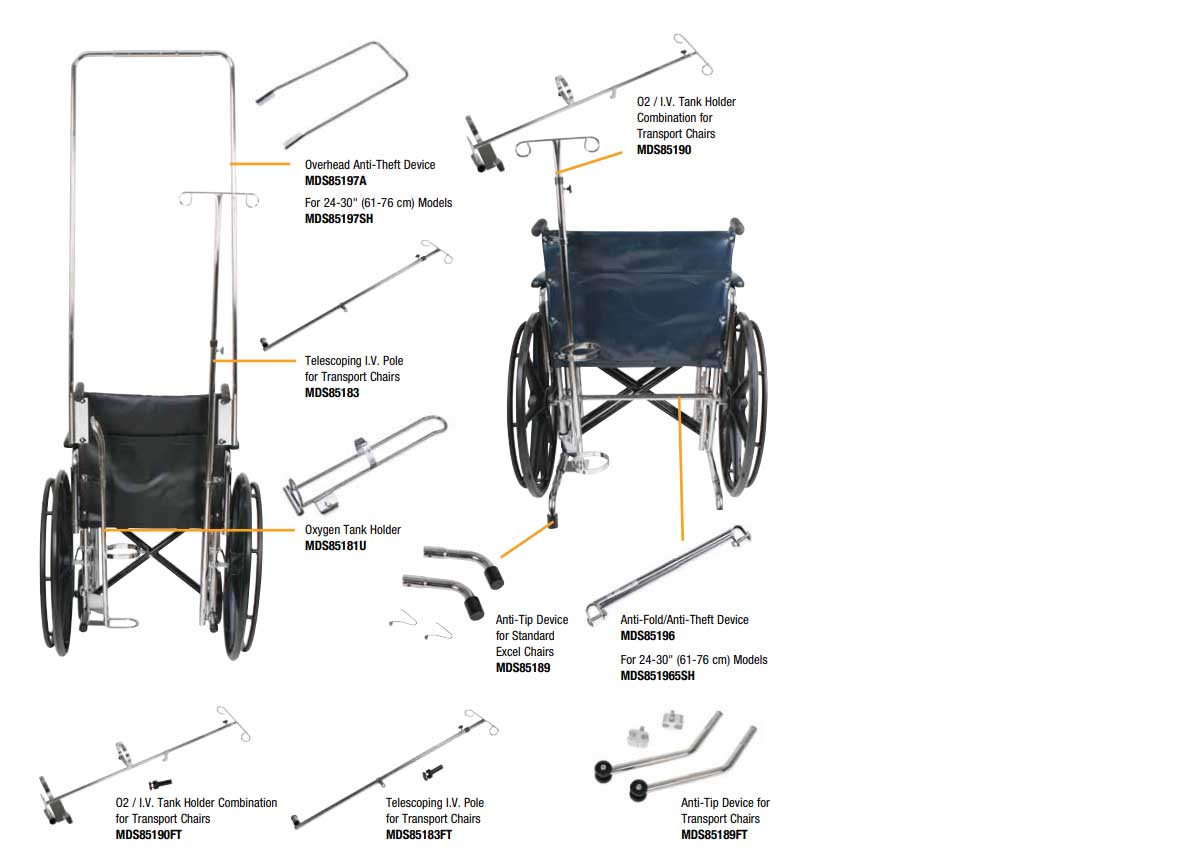

Medline Wheelchair Accessories
Below are wheelchair accessories to help make your wheelchair safer, more comfortable, and offer additional capabilities. This compatibility chart lists the most popular wheelchairs and the accessories that are compatible.
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Wheelchair Types | - | Strong & Sturdy |
Comfort Driven | Excel 2000 |
Durable Easy to Clean |
Lightweight User Friendly |
Premium Ultra-Light |
Extra-Wide Heavy Duty |
Hybrid 2 |
Classification | - | K1 | K1 | K1 - K2 | K2 | K3 - K4 | K4 | K7 | K4 |
Oxygen Tank Holder |
MDS85181U MDS85190 (Universal with IV Pole) |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
IV Pole |
MDS85183 (Universal - Telescoping) MDS85190 (Universal with O2 Holder) |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
✔ ✔ |
Anti-Fold Device |
MDS85196 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Anti-Tip Device |
MDS85189 MDS85189WK4 |
✔ - |
✔ - |
✔ - |
✔ - |
- ✔ |
- ✔ |
✔ - |
- - |
Elevating Legrests |
WCA806985E WCA806985HCMP (Universal) WCA806985HEMI |
✔ ✔ - |
✔ ✔ - |
- ✔ - |
- ✔ - |
- ✔ - |
- ✔ - |
- ✔ ✔ |
- ✔ - |
Wheel Lock & Brake |
WCA806990R (Universal) WCA806990PK4 |
✔ - |
✔ - |
✔ - |
✔ - |
✔ ✔ |
✔ ✔ |
✔ - |
✔ - |
Safety Belt |
WCABELT | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
Vitality Medical also carries other items that would match well with the Ultra-Light Wheelchair, such as the Gel Foam Pressure Redistribution Wheelchair Cushion and the Oxygen Cylinder Carry Bag. Below is a chart of addition accessory items.
Medline Wheelchair Accessories
When you need replacement parts for your Medline Wheelchairs, call Vitality Medical at 800-397-5899.
