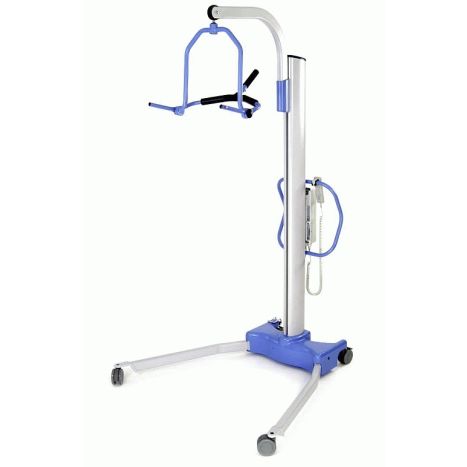

Joerns Hoyer Stature Patient Lift is a major flagship product by Joerns, which recognizes the needs of patient care and safe resident handling. The lift will safely support up to 500 pounds to assist with lifts to prevent injury to both the resident and caregiver. The Stature is very versatile with one of the largest lifting range, 26.6 - 77.7 inches, giving this electric lift the ability to cope with the most demanding and technical of patient handling situations.
Hoyer Stature Professional Patient Lift was designed to ensure simple, safe, and above all, comfortable transfers for the patient and ease for the caregiver to operate. In fact, the electric-powered leg operating system is operated by the caregiver's foot leaving the caregiver upright and focused on the the patient.
The Hoyer Stature Lift is used to handle the most demanding and technical of patient handling situations, including toileting and point-to-point transfers. The easy-to-use clip-style 4-point positioning cradle enables the caregiver to position the patient by rotating the cradle with the patient into either a fully seated or reclined orientation. This flexibility ensures the patient is comfortably transferred and requires little or no repositioning.
The Stature Lift comes complete with a 4-point harness and electric base. There is a package that also includes a digital scale, providing a $500.00 discount over purchasing the scale separately. Additional cradles are available to purchase for a backup cradle or replacement. Joerns also manufactures U-Shaped Slings to add an extra level of support. They are padded and designed with and without head support.
Features and Benefits
- Large Lifting Range
- Supports up to 500 Pounds
- Ergonomic Design Protects Patient and Caregiver
- Handles Most Demanding Patient Handling Situations
- Compact for Greater Portability
- Oversized Handle for Increased Control
- Push Footpad Reduces the Force to Initiate Movement
- Leg Design Accommodates Furniture
- Foot-Operated Leg-Spreading Mechanism Doesn't Require Bending to Operate
Product Specifications (Imperial/Metric)
- Manufacturer: Joerns
- Lift Product Numbers: HOY-STATUREWSC, HOY-STATURE
- Accessory Product Numbers: HOY-4PT-APC, HOY-4PTSB, HOY-6PTSB, HOY-STAT-SCALE
- Weight Capacity: 500 Pounds /227 Kilograms
- Max. Overall Length: 54.7 Inches/1390 Millimeters
- Min. Overall Length: 50.8 Inches/1290 Millimeters
- Max. Overall Height: 83.8 Inches/2130 Millimeters
- Min. Overall Height: 76.6 Inches/1945 Millimeters
- Max. Height to Attachment Point (4-Point): 61 Inches/550 Millimeters
- Min. Height to (4-Point) 15.4 Inches/390 Millimeters
- Max. Height to (6-Point) 77.1 Inches/1975 Millimeters
- Min. Height to (6-Point) 26.6 Inches/675 Millimeters
- Turning Radius 61 Inches/1550 Millimeters
- External Width with Legs Open: 53.5 Inches/1360 Millimeters
- Internal Width with Legs Open: 48.4 Inches/1230 Millimeters
- External Width with Legs Closed: 29.9 Inches/760 Millimeters
- Internal Width with Legs Closed: 25.1 Inches/640 Millimeters
- Overall Height of Legs: 4.3 Inches/110 Millimeters
- Ground Clearance: 1.2 Inches/30 Millimeters
- Caster Size: 4 Inches/100 Millimeters
Weights (Imperial/Metric)
- Mast, Base & Boom Assembly: 142 Pounds/64.5 Kilograms
- 4-Point Positioning Cradle: 13.2 Pounds/6 Kilograms
- Power Pack: 6.6 Pounds/3.0 Kilograms
- Total Weight: 162 Pounds/73.5 Kilograms
Electrical Specifications
- Battery Type: 24V DC Rechargeable Sealed Lead Acid
- Battery Life: 3.2 A Ampere Hours
- Charger Rated Input: 100-240 V AC 24 V DC 50/60 Hz
- Charger Rated Output: 29.5 V DC, Max. 19 W
Hoyer Warranty
- Two-Year Limited Warranty
Manuals and Documents
Product Videos
Operating Hoyer Stature Lift Video (10:33 minutes)
Hoyer Lift Comparison Chart
Hoyer Lift Features | Hoyer Manual | Hoyer Stature | Hoyer Presence | Hoyer Elevate | Hoyer Advance |
 |  |  |  |  | |
Width | 24 / 40.5 | 53.5 / 29.9 | 40.1 / 26.4 | 39.1 / 24.8 | 39.4 / 21.7 |
Length | NA | 54.7 / 50.8 | 57.5 / 55.1 | 43.3 / 41 | 66.5 / 17.7 |
Height | NA | 83.8 / 76.6 | 81.3 / 57.5 | 65.5 / 48.4 | 25.6 / 13.8 |
Weight | NA | 162 | 88 | 136.4 | 69.7 |
Top Feature | low price | lifting range weight capacity | weight capacity | compact | get closer to wide obstacles |
Working Weight | 400 | 500 | 500 | 440 | 341 |
Battery | none | 24V / 3.2A | 24V / 3.2A | 24V / 3.2A | 24V / 3.2A |
Turning Radius | NA | 61 | 64.2 | 48.2 | 55.9 |
Warranty | limited 1 yrs. | limited 2 yrs. | limited 2 yrs. | limited 2 yrs. | limited 2 yrs. |
Price | $982.80 | $5,555.25 | $4,720.95 | $5,258.25 | $2,357.10 |
