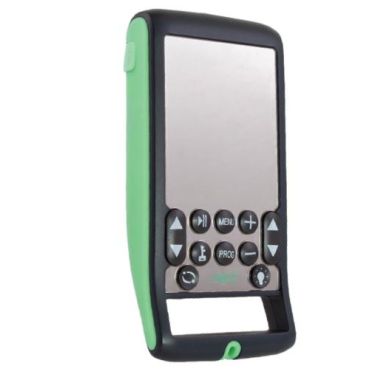

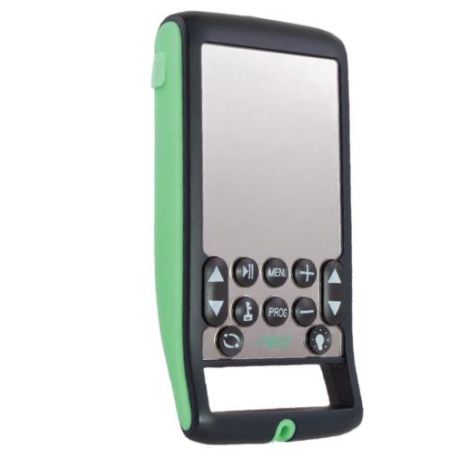

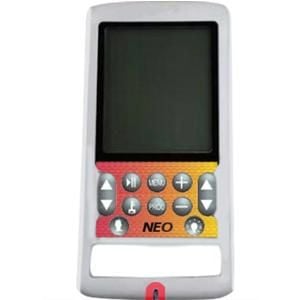

Ultima Neo TENS, EMS, IFC Micro Advanced Multi-Mode Electrotherapy Stimulator

Who uses the Ultima Neo TENS Unit? Those who are experiencing chronic or acute muscular pain as well as physical therapists and professionals assisting patients with pain.

Why they love it: The Ultima Neo Unit offers four different types of electrical stimulation in one convenient unit.

Ultima Neo TENS, EMS, IFC Micro Unit Advanced Multi-Mode Electrotherapy Stimulator Overview

The Ultima NEO combines four types of electrotherapy for optimal pain relief. With the Ultima Neo Advanced Electrotherapy Stimulator, the user can choose between TENS, EMS, Microcurrent (MIC), or Interferential Stimulation (IF) therapy modes. These modes are all intended to stimulate affected muscles and reduce pain through electrical currents. Since the unit runs on battery power, the Interferential function can be used without having to be tethered to a wall outlet, as well as long battery runs on TENS, EMS, and Micro modes.

Be sure to explore the range of electrotherapy devices Vitality Medical has available!

Product Features and Benefits

• Four Different Electrotherapy Modes
• Rechargeable Unit Comes With Charger Adapter
• Up to 150 mA Intensity
• One-Year Warranty
• Includes Body Part Diagrams
• Can Use Interferential Function Without an Outlet

What's in the Box?

• Ultima Neo Advanced Multi-Mode Electrotherapy Stimulator
• Two lead wires
• Four self-adhesive pads with connectors
• Rechargeable 3.7V lithium battery
• Charger with an adapter and charging cradle
• Instruction manual
• Electrode placement guide and body part diagrams
• Carrying case

Related Products

• The UltraTENS II Unit combines electrotherapy and ultrasound therapy for deep, powerful pain relief.
• The Thermotex Infrared Therapy Heating Pad can help treat pain associated with sports injuries, muscle spasms, and more.
• The BodyMed EMS Unit uses electrotherapy for effective rehabilitation.

Product Specifications

• Manufacturer: Pain Management Technologies
• Product Number: PMT-UNEO
• Weight: 2 Pounds
• Color: Black and Green
• Pulse Width Control: Yes
• Built-in Timer: Yes
• Output Power: 0-150 mA
• Power Supply: Li-ion Rechargeable Battery
• Application: Electrotherapy Stimulator
• Warranty: 1-Year

Neo TENS Specifications

• Ch1 Intensity: Up/Down 20 Steps of 5mA, 5.0 to 100mA Into 1 kohm
• Ch2 Intensity: Up/Down 20 Steps of 5mA, 5.0 to 100mA into 1 kohm
• Frequency: From 1Hz to 150Hz in Steps of 1Hz
• Pulse Width (Microseconds): 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 210, 220, 230, 240, 250, 300
• Waveform: Symmetrical Bi-Phasic Rectangular, Asymmetrical Bi-Phasic Rectangular Mono-Phasic Rectangular
• Treatment Timer (Minutes): Continuous, 15, 30, 45, 60, 90

Neo EMS Specifications

• Ch1 Intensity: Up/Down 20 Steps of 5 mA, 5.0 to 100 mA into 1 kohm
• Ch2 Intensity: Up/Down 20 Steps of 5 mA, 5.0 to 100 mA into 1 kohm
• Frequency (Hz): From 1Hz to 110Hz in Steps of 1Hz
• Pulse Width: 50-400 Microseconds in Steps of 50 Microseconds
• Waveform: Symmetrical Bi-Phasic Rectangular, Alternated Bi-Phasic Rectangular
• Ramp Time: 0-5 Seconds in Steps of 1 Seconds
• On Time: 1-60 Seconds in Steps of 1 Seconds
• Off Time: 0-60 Seconds in Steps of 1 Seconds
• Treatment Timer (Minutes): Continuous, 10, 20, 30, 45, 60, 90

Neo Microcurrent Specifications

• Ch1 Intensity:
  • Micro 1: (Neuro A), From 2.0mA to 72mA Into 500 ohm (Peak Value at Pulse Width=250 Microseconds) in Steps of 2.0mA
  • Micro 2: (Neuro B), From 0.1mA to 10mA into 1 kohm (Peak Value At Pulse Width=2.1ms) in Steps of 0.1mA
• Ch2 Intensity:
  • Micro 1: (Neuro A), From 2.0mA to 72mA Into 500 (Peak Value at Pulse Width=250 Microseconds) in Steps of 2.0mA
  • Micro 2: (Neuro B), From 0.1mA to 10mA into 1 kohm (Peak Value at Pulse Width=2.1ms) in Steps of 0.1mA)
• Frequency: Fixed 94Hz
• Pulse Width:
  • Micro 1: Fixed 250 Microseconds
  • Micro 2: Fixed 2100 Microseconds
• Waveform: Asymmetrical Bi-Phasic Rectangular Monophasic Positive Rectangular
• Treatment Timer (Minutes): Continuous, 10, 20, 30, 45, 60, 90

Neo Interferential Therapy Specifications

• Ch1 Intensity: Up/Down 30 Steps of 60mA, from 2.0mA to 60mA into 500 ohm
• Ch2 Intensity: Up/Down 30 Steps of 60mA, from 2.0mA to 60mA into 500 ohm
• Frequency: From 4004 Hz to 4160 Hz in Steps of 4 Hz
• Pulse Width: 125 Microseconds for Each Phase
• Waveform: Symmetrical Balanced Sine Wave
• Treatment Timer (Minutes): Continuous, 10, 20, 30, 45, 60, 90

Manuals and Documents

• User Manual contains operating instructions, assembly, and more.
