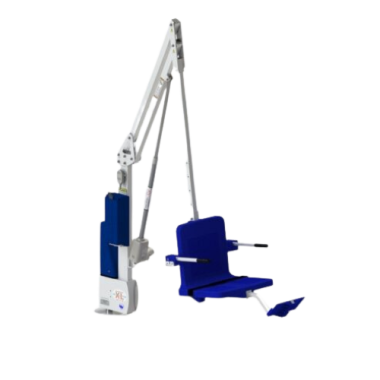

Revolution XL Overview
The Revolution XL Pool Lift helps those with limited mobility to be lowered into and raised from the pool. As the most versatile lift manufactured by Aqua Creek Products, the Revolution XL has an adjustable seat pole and 360-degree rotation that provides increased accessibility for patients. Made with stainless steel, the pool lift permits users to safely enjoy the benefits of swimming. The Revolution Aquatic Lift comes with a waterproof, four-button, rechargeable handset that allows a user to control how they are placed into or removed from the water. This pool lift has a weight capacity of up to 500 pounds and 400 pounds with the deep draft option. Both are ADA-compliant and UL-certified.
The Revolution Lift XL with the deep draft has the biggest anchor setback and deepest water drafts of all of Aqua Creek's pool lifts, accommodating more challenging pool designs, such as a curb, wall, or step that needs to be cleared.
The optional spine board accessory is great for those who cannot sit up but still want to be a part of the fun in the water.
Features and Benefits
- Stainless Steel Construction
- Durable
- Water-Resistant Remote Control
- Rechargeable Handset Battery With Wall Mount Charger
- Flip-Up Armrests
- Adjustable Footrest and Lap Belt
- Adjustable Seat Height
- UL Certified (Verified by Third Party, Wyle Labs)
- ADA Compliant
- Made in the United States
- Adjustable Seat Pole
- 360 Degree Rotation
Parts and Components
- Revolution XL or XL-DD
- Control Arm
- Lifting Arm
- Seat Arm
- Footrest
- Actuator
- Handset
- Rechargeable 24V Battery
- Wall Mount Charger
Note: Anchor and spine board attachment do NOT come with the lift. Product ships by common carrier with some assembly required.
Product Specifications
- 0Manufacturer: Aqua Creek
- Plastic/Powder Coating Colors: White/Blue, White/Tan, White/Gray, White/White
- Warranty:
- 5-Year Pro-Rated Electronics Warranty and Structural Warranty
- 1-Year Hydraulic Actuators
Revolution XL
- XL Product Numbers: F-REVXL, F-REVXL-T, F-REVXL--G, F-REVXL-W
- Setback Range: 9 to 50 Inches
- Clearances Vary by Wall Height and Width
- Water Draft: 13 Inches
- Lift Weight: 206.69 Pounds
- Weight Capacity: 500 Pounds
- Seat Width: 22 Inches
- Lowest Seat Height Adjustment: 15-7/8 Inches in 4-Inch Increments
- No. Seat Adjustments: 5
- Made of: 304 Stainless Steel With Powder Coat Finish
Revolution XL-DD
- XL-DD Product Numbers: F-REVXL-DD, F-REVXL-DD-T, F-REVXL-DD-G, F-REVXL-DD-T
- Anchoring Options: Pool Decks Made of Concrete, Pavers, and Wood
- Setback Range: 9 to 52 Inches
- Clearances Vary by Wall Height and Width
- Water Draft: 15-3/8 Inches
- Weight: 208.73 Pounds
- Product Weight: 208.73 Pounds
- DD Weight Capacity: 400 Pounds
- Seat Width: 22 Inches
- Lowest Seat Height Adjustment: 15-7/8 Inches in 4-Inch Increments
- No. Seat Adjustments: 5
- Made of: 304 Stainless Steel With Powder Coat Finish
Manuals and Documents
Pool Spa Profile Guide contains manufacturer field measurement instructions.- XL Specifications contains a rendering and specifications.
- XL Deep Draft Specifications contains a rendering and specifications.
- XL Lift User Manual contains assembly instructions.
- XL-DD Lift User Manual contains assembly instructions.
- XL Brochure contains features, accessory options, and anchoring information.
- XL-DD Brochure contains features, accessory options, and anchoring information.
