Product Overview

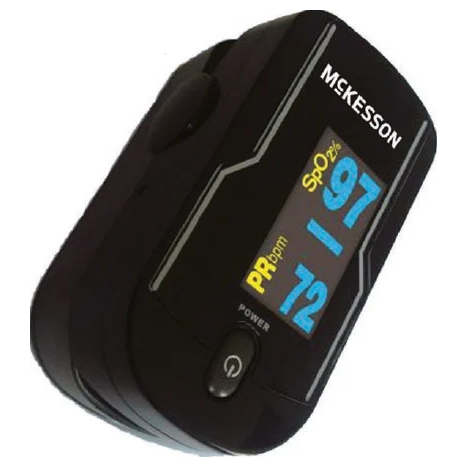

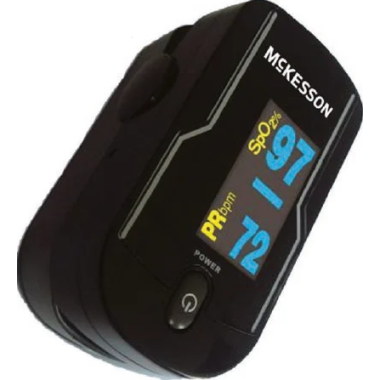

McKesson Pulse Oximeter - 16-93651 is a compact device with low-power consumption and user-friendly operation. This non-invasive pulse oximeter simply requires the user to put one finger into the fingertip photoelectric sensor and the OLED display screen will show oxygen saturation and heart rate in real time. McKesson Fingertip Pulse Oximeter is universal and customizable, making it a great device to keep in the home or at a clinic. With pulse rate, Sp02 (oxygen saturation), pulse bar, and plethysmogram functionality, McKesson Oximeter Fingertip Pulse Sensor is a convenient and discreet device that can be carried in the user's pocket or hung from the included lanyard for on-the-go oximetry. Pair with a Handheld Aneroid Sphygmomanometer with Nylon Cuff to stay on top of an even wider range of vital signs.
Features and Benefits
- Non-Invasive Measurement of Functional Blood Oxygen Saturation, and Pulse Rate
- OLED With Adjustable Brightness Displays Sp02, Pulse Rate, Pulse Bar, and Plethysmogram
- Easy-to-Read Font and Format of User-Friendly Device
- Six Display Modes With Toggle View Options for Display Customization
- Measures Pulse Rate Between 30-235 BPM With Accuracy of ± 2%
- Measures SpO2 (Oxygen Saturation) Levels Ranging From 70% - 99% With Accuracy of ± 3%
- Adjustable OLED Has 10 Levels of Brightness for User Preference
- Low Power Consumption Design With Automatic Power-Off When Unused
- Runs on Two AAA Batteries (Included) With Battery Life Indication
- Requires Zero Calibration or Maintenance Aside From Battery Changes
- Lightweight, Discreet, and Portable Design Weighs Only 50 Grams
- Includes Neck Lanyard for Portability and Convenience
- Universal Design Suitable for Use by Pediatric to Adults
What's Included
- Pulse Oximeter
- One Lanyard
- Two AAA Batteries
- Instructions for Use
Operation Instructions
- Install two AAA batteries into the battery compartment.
- Place clamp over the fingernail.
- Fully insert one finger into the rubber hole of the oximeter.
- Press the switch on the front panel.
- Finger and body should not tremble during the measuring.
- Read correspondent data from the display screen.
Product Specifications
- Manufacturer: McKesson
- Product Number: 16-93651
- Application: Fingertip Pulse Oximeter
- Warranty: 2 Year
- Latex-Free: Yes
- Alarm Type: Without Alarm
- Display Range: 0 ~ 100%
- Measurement Range: 70% ~ 100%
- Accuracy: 70% ~ 100%: ±2%; 0% ~ 69% No Definition
- Resolution: 1%
- Power Requirement: Two AAA alkaline Batteries
- Power Consumption: < 30mA
- Length: 56 mm
- Width: 32 mm
- Height: 34 mm
- Weight: 50 g (Including Two AAA Batteries)
Manuals and Documents
Product Videos
How Does Pulse Oximetry Work? (10:24 minutes)
For more information regarding how accuracy is determined please see the FDA.Gov - Pulse Oximeter Accuracy and Limitations: FDA Safety Communication safety communication.
