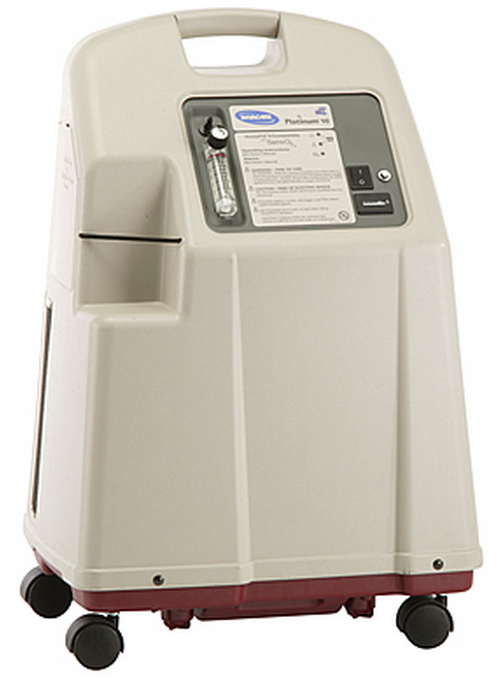

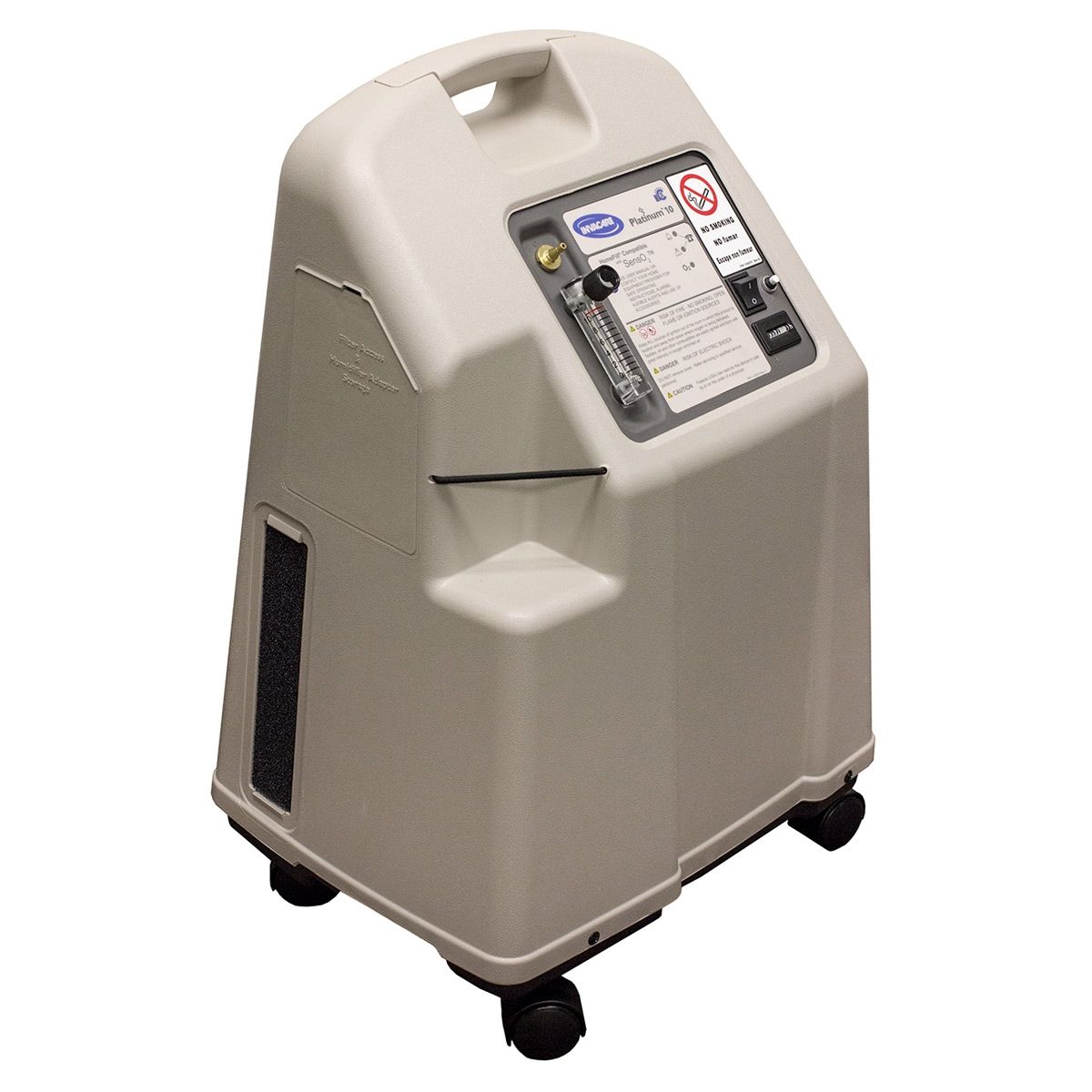

Invacare Platinum 10 Liter Home Oxygen Concentrator Overview
Invacare Platinum 10 Oxygen Concentrator is one of the leading home concentrators to meet the needs of individuals who require respiratory therapy. Manufactured by Invacare, the machine delivers the reliability, performance, and value advantage for stationary units and provides an attractive alternative to liquid oxygen systems. The device provides up to 10 LPM for individuals requiring high O2 doses. It is a reliable and long-lasting unit.
Platinum 10 Home Oxygen Concentrator (Invacare IRC10LXO2) is the top home oxygen unit. Its design provides high oxygen output. The Platinum 10 is constructed with a spring-mounted compressor that offers easy access and service by removing only four cabinet screws, a top handle, and a side-access door to access both the inlet and outlet HEPA filters. The concentrator machine has an oxygen sensor (SensO2) and is compatible with the Invacare HomeFill II. With the Invacare HomeFill II Station, users can fill portable oxygen cylinders. This allows therapy users to untether from a stationary O2 machine. (More information is found below.) The O2 sensor is an accurate and precise gauge to show what concentration of oxygen is being delivered. With high-oxygen therapy users, it is often important to know the exact dosage individuals are receiving. With the Platinum 10 Oxygen Concentrator's O2 sensor, users have confidence they're receiving the prescribed treatment.
Additional Resources
Brochure portrays the features and benefits.
Owner's Manual from Invacare discusses proper operation, maintenance, and use.
Warranty details the warranty policies by Invacare for this product.
User-Friendly Maintenance
Easy filter maintenance and access.
Quiet Operation
Sound Level: 50 dBA average.
Integrated Oxygen Sensor
Provides oxygen purity information.
Product Details

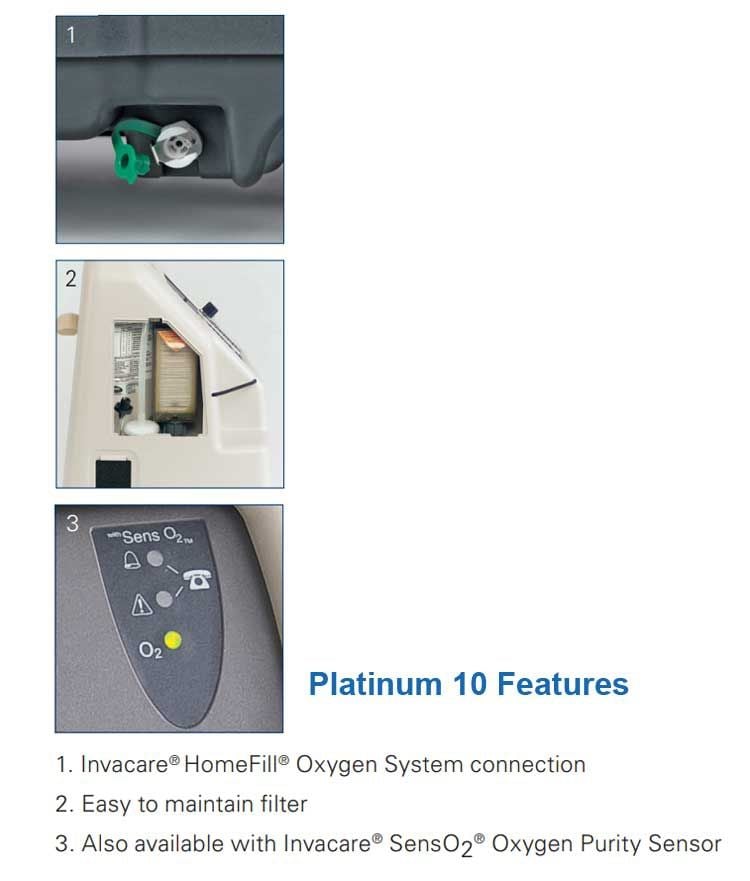

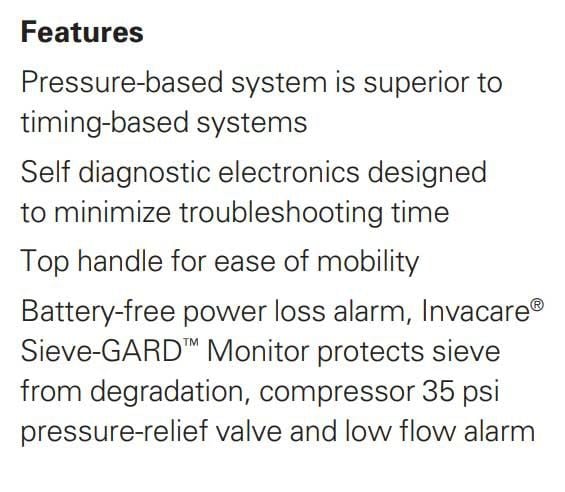

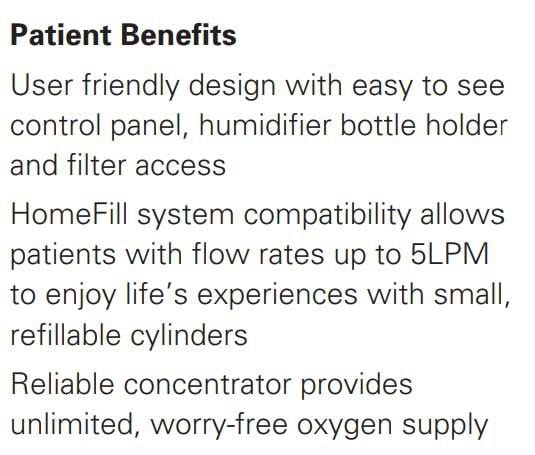

Plantinum 10 Features & Benefits
- High Oxygen Output
- Continuous Oxygen Dose
- Easy Maintenance Access
- Superior Life Cycle
- Compatible With the Invacare HomeFill II
- Built-In O2 sensor
- Three Separate Filters for O2 Purity
- Sieve-GARD Monitor Protects Against Sieve Degradation
- Patient Accessible Reset Button
- Power Loss Alarm That's Battery-Free
Resources & Instructions
HomeFill Outlet Fitting
This stationary unit is compatible with an optional accessory: IOH200, the HomeFill home oxygen compressor. This allows users to fill an oxygen cylinder for portable oxygen therapy when away from home. When filling the cylinder, it won't affect the concentrator's performance or the user's oxygen concentration.
How To Attach a Humidifier Bottle Adapter
- Step 1: Attach the humidifier bottle adapter to the bottle, turning the wing nut counterclockwise until it's fastened.
- Step 2: Insert the humidifier bottle into the compartment found on the front of the unit by attaching the humidifier bottle/adapter tube.
- Step 3: Attach the nasal cannula supply tube to the humidifier bottle outlet.
- Step 4: Test to ensure the oxygen is flowing through the cannula.
Cleaning the Cabinet Filter
- Remove both cabinet filters located on each side of the cabinet.
- Vacuum or wash the filter with mild detergent and water.
- Rinse completely.
- Allow to air dry. Replace if there is any sign of damage.
- Reinstall the filters.
Key Specifications
- Manufacturer: Invacare
- Product Numbers: IRC10LXO2
- Dimensions
- Width: 18-3/8 Inches
- Height: 26-3/8 Inches
- Depth: 14-3/8 Inches
- Weight: 54 Pounds
- Electrical: 120VAC +/- 10% (132VAC / 108VAC); 60Hz
- Power: 585 Watts
- Rated Current Input: 4.9 Amps Average @ 5L/Min.
- Performance
- Sound Level: 50 dBA Average
- O2 Output: 94% to 87% at All Flow Rates
- Maximum Outlet Pressure: 5 PSI +/- 0.5 PSI
- Operating Flow Rate: 2 - 10 Liters per Minute
- Power: 585 Watts
- Pressure Relief Mechanism: 35 PSI +/- 3.5 PSI
- 3 Filters: Cabinet, Outlet HEPA, Compressor Inlet
- Shipping Product Weight: 61
- HCPCS Code: E1390
- Product Warranty: 3 Years
