HELiOS LOX Liquid Oxygen

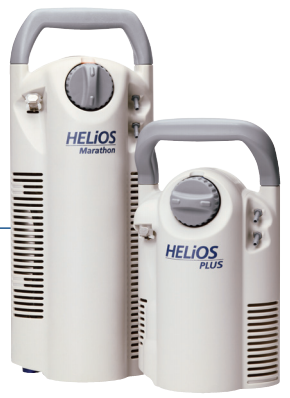

HELiOS Plus and Marathon Liquid Oxygen portable units prove that big things come in tiny systems. In one corner, weighing 3.6 pounds and providing 308 liters of oxygen is the Plus. In the other corner is the Marathon, weighing 5.6 pounds and providing 685 liters of oxygen. When completely filled, the HELiOS Plus and Marathon can provide anywhere from 10-20 hours of battery- and electricity-free oxygen therapy (depending on model and setting). The wearable HELiOS Plus and Marathon devices provide hands-free solutions for your supplemental oxygen needs.

Product Features and Benefits

• Robust carrying handle
• Durable, "no spill" design
• Does not emit heat or noise
• Long duration between refills
• Liquid oxygen that is lightweight and portable
• Fully pneumatic -- No batteries or electricity required
• Versatile -- Both operate when upright, horizontal or virtually any position in between

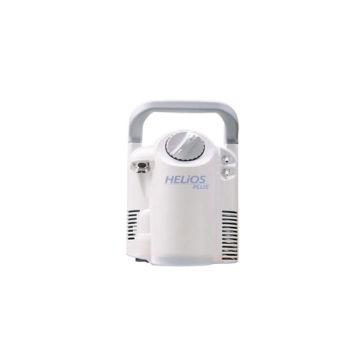

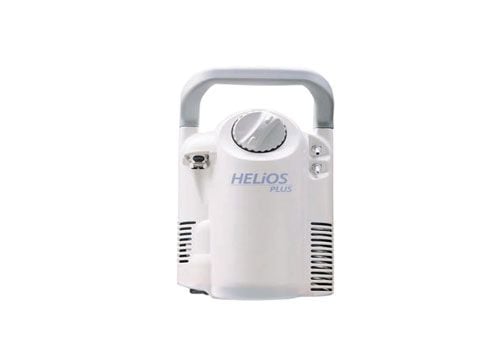

Developed by CAIRE Inc., the HELiOS Personal Plus Liquid Oxygen System stands just 10.5 inches tall and provides up to 10 hours of worry-free oxygen therapy -- no need to carry additional batteries or search for an AC power outlet. HELiOS Plus provides up to 4 LPM in demand flow -- making it the industry's smallest unit to do so. The low-pressure HELiOS Plus (22 PSI) can be refilled via the stationary HELiOS LOX Home Reservoir for Liquid Oxygen Therapy. Once refilled, Plus weighs just 3.6 pounds -- ideal for wearing via shoulder or belt strap.

Product Specifications

• Product Number: H300
• Height (including handle): 10.5 inches
• Weight (empty): 2.7 pounds
• Weight (full): 3.6 pounds
• Capacity: 0.9 pounds
• Gas Equivalent Capacity: 308 liters
• Oxygen Duration Pulse (@ 2 LPM): 9 hours
• Oxygen Duration Continuous: N/A
• Operating Pressure: 22 PSI
• Normal Evaporation Rate: 1 pound daily
• Standard Flow Control Range: Pulse Flow - off, 1, 1.5, 2, 2.5, 3, 3.5, 4; Continuous Flow - off, 0.12, 0.25, 0.5, 0.75
• LOX Capacity: 0.9 pounds
• Sound: 0 dBA (silent)
• Manufacturer: Chart Industries
• Brand: HELiOS
• HCPCS Code: E0434
• Warranty: 2-year limited

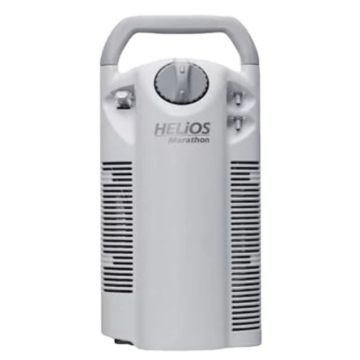

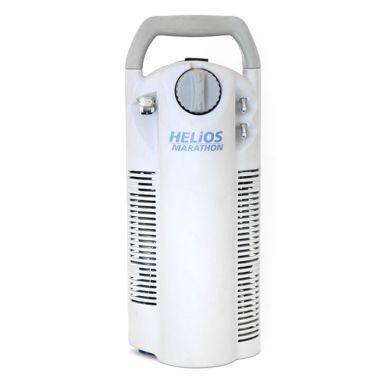

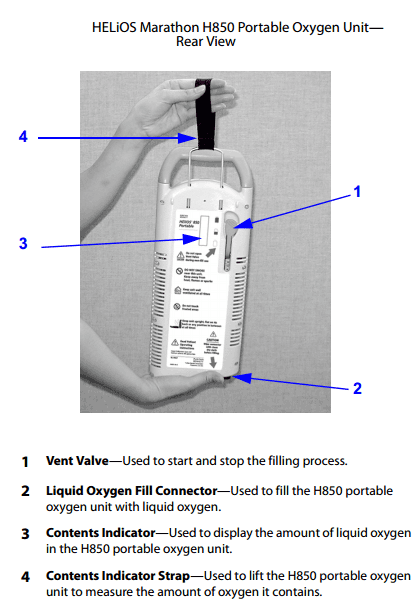

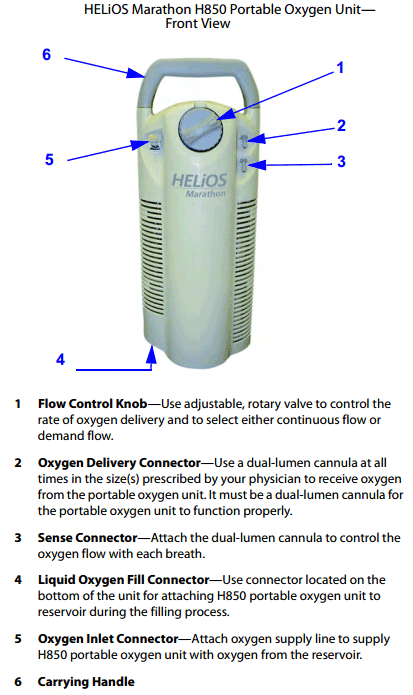

Aptly named, the HELiOS Marathon Liquid Oxygen System provides up to 20 hours of oxygen therapy at a demand flow setting of 2 and up to 5 hours at a continuous flow setting of 2. Only 15 inches tall and a paltry 5.6 pounds when refilled with the HELiOS LOX Home Reservoir for Liquid Oxygen Therapy Marathon is ready for whatever the day may hold. To get the most out of the extended operating hours, Marathon may be toted with a shoulder strap or placed and worn in an optional HELiOS waist pack or backpack.

Product Specifications

• Product Number: H850
• Height (including handle): 15 inches
• Weight (empty): 3.6 pounds
• Weight (full): 5.6 pounds
• LOX Capacity: 2 pounds
• Gas Equivalent Capacity: 685 liters
• Oxygen Duration Pulse (@ 2 LPM): 22 hours
• Oxygen Duration Continuous (@ 2 LPM): 6 hours
• Max Flow: Pulse Flow - 4 LPM, Continuous Flow - 6 LPM
• Operating Pressure: 22 PSI
• Normal Evaporation Rate: 0.85 pounds daily
• Standard Flow Control Range: Pulse Flow - off, 1.5, 2, 2.5, 3, 4; Continuous Flow - off, 1-6
• Sound: 0 dBA (silent)
• Manufacturer: Chart Industries
• Brand: HELiOS
• HCPCS Code: E0434
• Warranty: 2-year limited

Select between two reservoirs--the HELiOS U36 or the U41. The U36 stores up to 85 pounds of liquid oxygen while the U46 holds up to 110 pounds. Both models have a diameter of 15.4 inches and differ in height by only 4 inches. They may be used for in-home oxygen therapy and for refilling the portable units discussed above. Both are designed with a low-loss evaporative control system to minimize gas loss.

Product Features & Benefits

• Oxygen saving design to reduce the number of refills
• Electronic readout of remaining contents keep you informed
• Top fill design is easy to use
• Refills portable units in seconds
• Offers 100% oxygen concentration levels
• Dual functions of a home oxygen dispenser and as a refill station

HELiOS U36 Home Reservoir is a smaller storage device that offers greater portability. When full, it weighs about 40 pounds less than the U46. It stores up to 85 pounds of oxygen. When providing oxygen therapy at 2 liters per minute (LPM), it lasts for approximately 10.9 days. It is designed with a low-loss evaporative control system to reduce the loss of oxygen to a minimum.

Product Specifications

• Diameter: 15.4 Inch
• Height: 33.5 Inch
• Capacity: 85 lbs.
• Weight when empty: 53 lbs.
• Weight when filled: 138 lbs.
• Typical continuous use time at 2 LPM: 10.9 days

HELiOS LOX U46 Home Reservoir is the larger of the two liquid oxygen reservoir options. It weighs about 7 pounds more than the U36 and can store 8,847 additional liters of oxygen gas. It provides approximately 3 additional days of oxygen at 2 LPM volume.

Product Specifications

• Diameter: 15.4 Inch
• Height: 37.5 Inch
• Capacity: 85 lbs.
• Weight when empty: 60 lbs.
• Weight when filled: 170 lbs.
• Typical continuous use time at 2 LPM: 13.9 days
