AccuRelief Single Channel TENS Electrotherapy Pain Relief System (ACRL-2001)

Pain Relief Tens Unit Overview

AccuRelief ACRL-2001 Single Channel TENS Pain Relief System is a personal Transcutaneous Electrical Nerve Stimilation devise. This TENS device allows users to bombard their pain centers with two electrode pads (single channel) and preprogrammed therapy settings. It can provide pain relief for arthritis, muscular, joint or back pain without the use of drugs or medications. This FDA approved pain relief method is safe and effective.

The AccuRelief Single Channel Pain Relief TENS System offers six preset programs designed to treat individual body areas. Intensity adjustments may be made between 25 levels of stimulation to maximize therapeutic benefits. Carex manufactures several AccuRelief products for your consideration, including the Wireless TENS, and Dual Channel TENS.

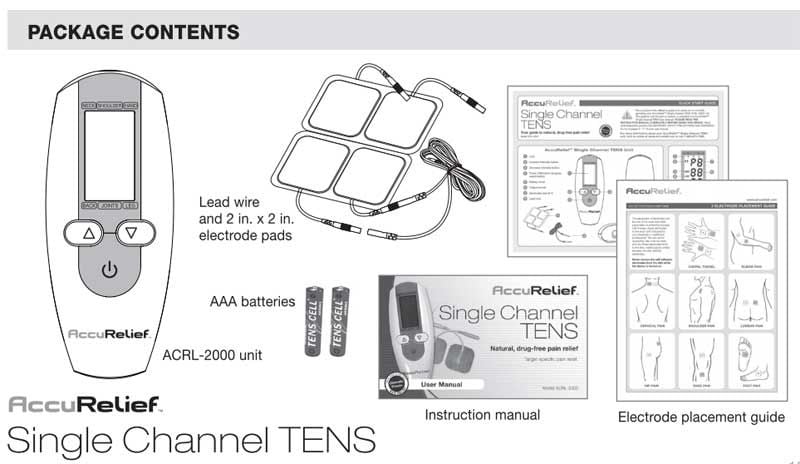

Product Contents

• TENS Device
• Two Reusable, Self-Adhesive Electrode Gel Pads
• One Lead Wire
• Two AAA Batteries
• Instruction Manual
• Quick Start Guide
• Electrode Placement Guide

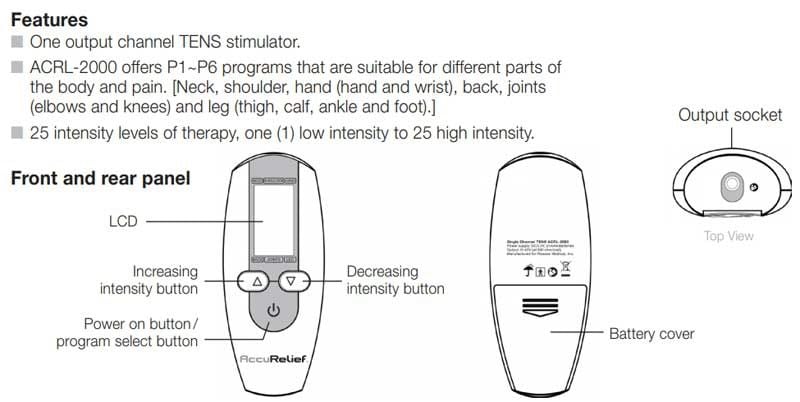

Product Features and Benefits

• FDA Approved
• Latex-Free
• Odor-Free
• Drug-Free
• Clinically Proven Safe and Effective TENS Pain Relief Treatment
• Effective Drug-Free Pain Relief Treatment
• Easy to Use Device with 6 Pre-Programmed Body Area Specific Treatments
• 15 Adjustable Intensity Levels for Personalized Treatment
• Compact Device with 2 Reusable Gel Pads Offer Easy Portability
• Gel Pads Contour to Almost Any Body Area
• Auto-Shutoff after 20 Minutes for Safety

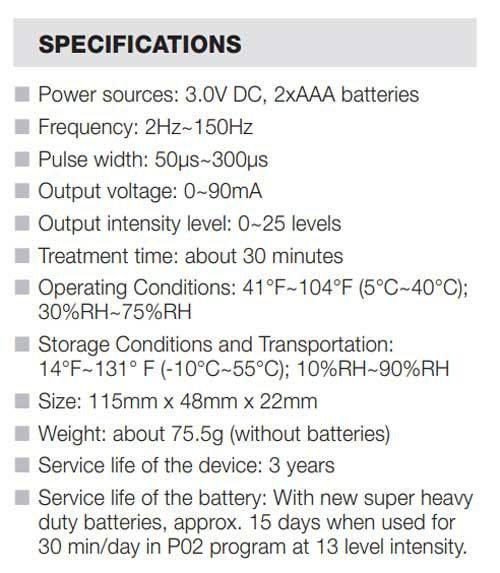

Product Specifications

• Product Number: ACRL-2001.
• Width: 1.89 Inch.
• Length: 4.5 Inch.
• Depth: 0.87 Inch.
• Wave form: Bi-phase square pulse wave.
• Number of Electrodes: 2.
• Connectivity: Wired.
• Frequency Range: 2~150Hz.
• Pulse Width: 50~300 μS.
• Output Voltage: 0~90mA.
• Output Intensity Levels: 0~25 levels.
• Treatment time: 30 minutes.
• Batteries: 3x AAA.
• HCPCS Code: A9720.
• Manufacturer: Carex.

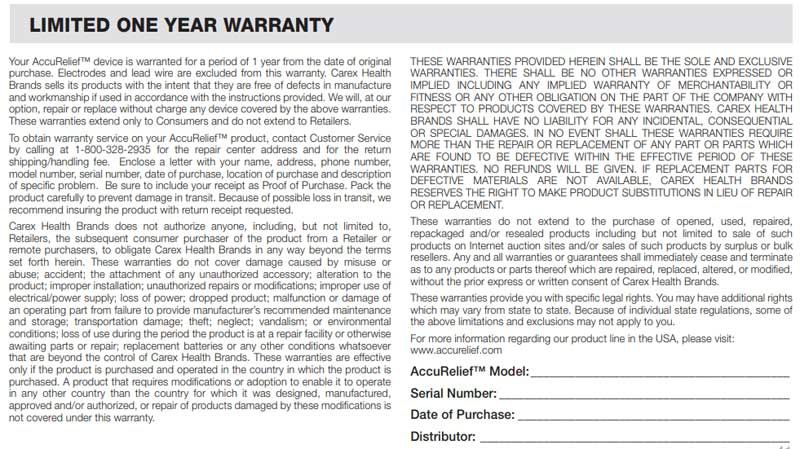

• Manufacturer's Warranty: Limited 1 Year.

Manuals and Documents

•     Quick Start Guide ACRL-2001 Electrotherapy Equipment contains use instructions.
•     ACRL-2001 Electrical Stimulation Machine User Manual contains details about the product, specifications, warranty and troubleshooting.

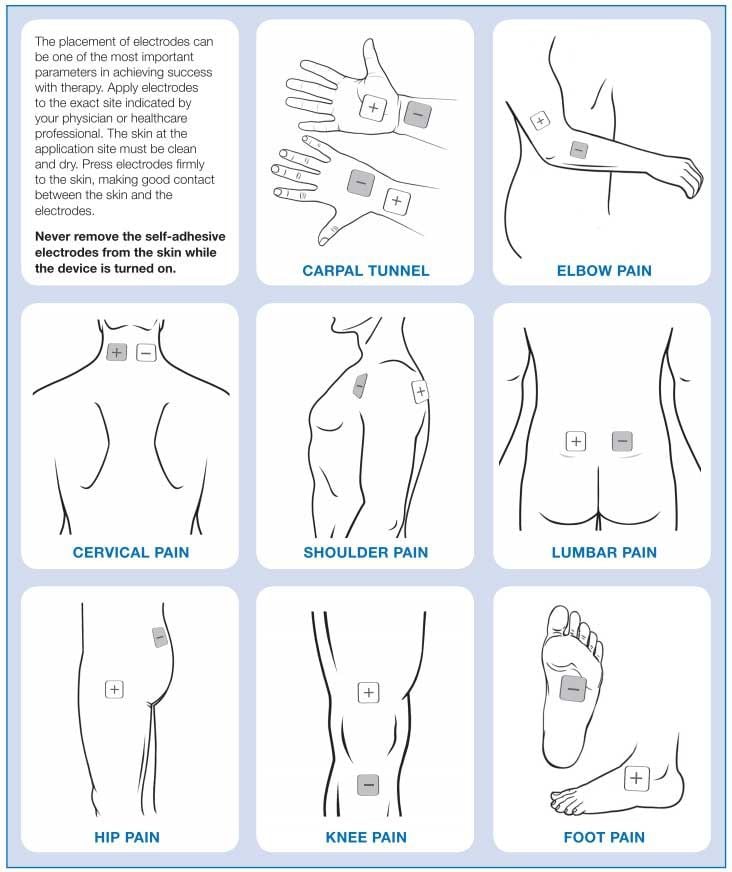

•     Application Guide for 2 Electrodes for the placing the electrodes on the body.

Product Videos

AccuRelief TENS Electrotherapy Pain Relief Systems Video (0:49 minutes)
