Overview

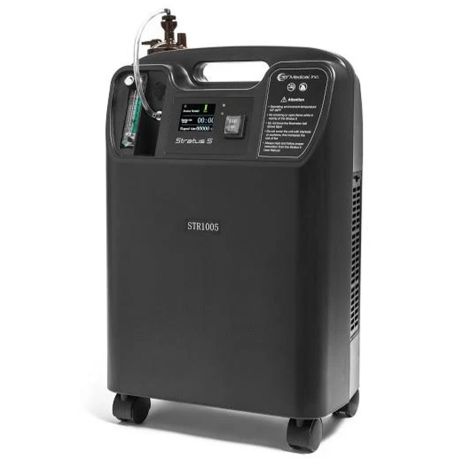

The Stratus 5 Oxygen Concentrator is specifically designed to provide additional oxygen for individuals who require oxygen therapy on a daily basis. It works by extracting concentrated oxygen from the surrounding air in a room and delivers it at a low-flow rate.
The concentrated oxygen generated by the Stratus 5 Stationary Oxygen Concentrator utilizes a process called pressure swing adsorption and a molecular sieve.
The Stratus 5 Oxygen Concentrator (3B Medical STR1005) includes a band that securely holds the humidifier bottle in place on the device. Additionally, it is equipped with a flow meter that displays the rate of oxygen in liters per minute that is being delivered from the outlet port.
The Stratus 5 Concentrator is equipped with a power switch that displays clear indicators: "I" shows that the device is currently in operation, while "O" means that oxygen is no longer being supplied. Its design includes a special intake filter that safeguards the user by preventing dust particles from entering the concentrator. Additionally, this oxygen system is conveniently equipped with a filter access panel, making it easy to clean and maintain.
Stratus 5 Features and Benefits
- Offers Oxygen Therapy
- User-friendly and Effortless Operation
- Detachable Intake Cover
- Colored Power Button for Turning On and Off
- Simple to Maintain and Keep Clean
Conditions for Operating in the Environment
Ensure that the operating environment is adequately ventilated and dry. It is important to avoid using this device in areas that are dusty or damp, and to keep it away from any sources of electromagnetic interference. To allow for proper airflow, maintain a minimum distance of 1 foot between the concentrator and curtains, bedding, furniture, and walls. Always connect this oxygen concentrator to an electrical outlet that is properly grounded.
- Recommended humidity range during operation: 20% to 65% RH
- Recommended temperature range during operation: 50 to 99° Fahrenheit
- Recommended atmospheric pressure range during operation: 500 to 1060 hPa
Storage and transportation guidelines
Ensure that the Stratus 5 Concentrator remains in an upright position at all times, especially during transportation.
- Recommended temperature range for storage and transportation: -22° F to 158° Fahrenheit
- Recommended humidity range for storage and transportation: 15% to 95% RH (without condensation)
- Recommended atmospheric pressure range for storage and transportation: 500 to 1060 hPa
How to Maintain and Clean Your Device
Vitality Medical provides a range of replacement filters, such as Hepa, sponge, and bacterial filters, to ensure the proper functioning of the concentrator. It is recommended to clean the sponge filter at least once a week to maintain pure airflow. If the environmental conditions are unfavorable, more frequent cleaning is advised.
- Take off the intake cover and sponge mesh filter.
- Wash the sponge with clean water and let it dry naturally.
- Once the sponge is dry, reinsert it into the device and reattach the cover.
Product Specifications
- Manufacturer: 3B Medical
- Product Number: STR1005
- Rated Power (W): 320
- Voltage: 120 V ± 12 V 60 HZ ± 1 HZ
- Flow Rate (L/min) 0.5~5
- Concentration (Rated Flow): 93% ± 5%
- Outlet Pressure (psi): 5-10
- Sound Pressure Level dB (A): ≤45
- Sound Power Level dB (A): ≤55
- Net Weight: 34 Pounds
- Purity Sensor: Digital
- Dimension: 15.3 x 9 x 23.6 Inches
- Features: Abnormal Temperature Alarm, Low Oxygen Concentration Alarm, Power Failure Alarm, Timer, Pressure Alarm, Low-Flow Alarm, Thermistor Fault Alarm
- Country of Origin: China
Manuals and Documents
Product Manual contains use and care instructions- Product Warranty contains product warranty
In the event of device failure, have a backup source of supplementary oxygen. Vitality Medical is not liable for any failure to provide a backup or if the customer does not follow the manufacturer's recommendations.
