3B Aer X Portable Oxygen Concentrator

Standard Bundle Components

• Aer X POC
• AC wall plug and power cord
• DC car charger
• Custom carry bag with adjustable strap
• Rechargeable lithium-ion battery
• 3-foot ultra-soft cannula

The 3B Medical Aer X Portable Oxygen Concentrator is one of the lightest and smallest 5-liter portable units at just 4.25 pounds (including battery). Its small footprint and modern design allow active oxygen users to be on the go for everyday activity. The convenient carry bag and a slim profile make oxygen therapy manageable, especially when traveling. Three power sources are included with the unit to assist with travel: a rechargeable lithium-ion battery, an AC wall plug, and a car DC power adapter.

A noticeable design feature is its magnetic cannula port, which automatically detaches. This addresses the pain and discomfort that occurs when cannula tubing gets caught on furniture and the cannula is pulled from the nostrils. That nuisance is eliminated, adding another level of comfort to oxygen therapy.

In terms of performance, the standard lithium-ion battery will provide four hours of use at oxygen flow setting 2. Aer X has pulse dose operation with five settings and an additional Auto X smart technology booster designed to detect the number of breaths per minute and then supplement extra oxygen to charge the "respiratory engine" so the body is more alert as the lungs, heart, and body are properly oxygenated. Noise output is similar and even lower than some of its competitors and reaches 40 dBA decibels at setting 2.

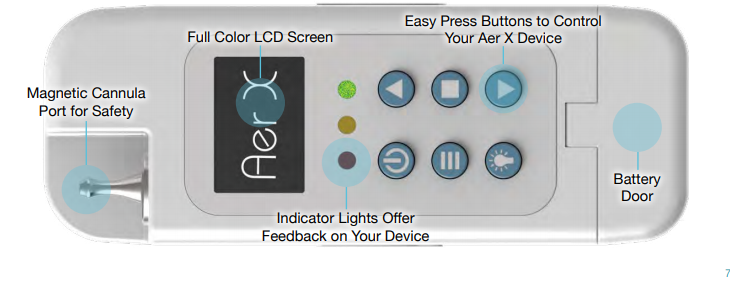

Easy Operation and Interface

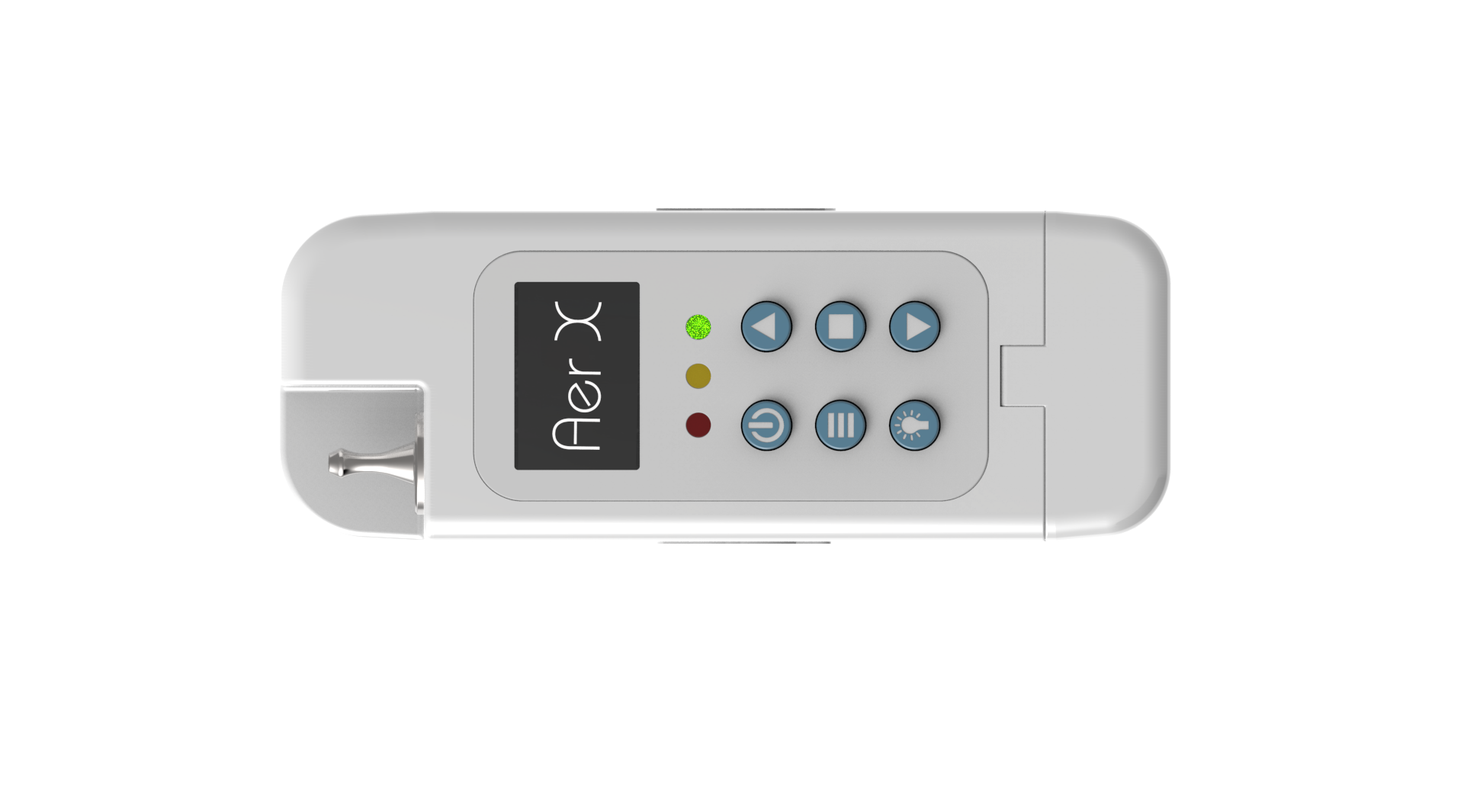

• Simple Press Buttons To Control the POC
• Full-Color LCD Screen Displays Setting and Battery Life or Settings Menu
• Indicator Lights and Alarm Alerts
• Easy Access to Battery Door
• Safety Magnetic Cannula Design

Features and Benefits

• Lightweight and Simple To Use
• Easy Access to the Inlet Air Filter, Cleaned Weekly and Replaced Every 6 Months

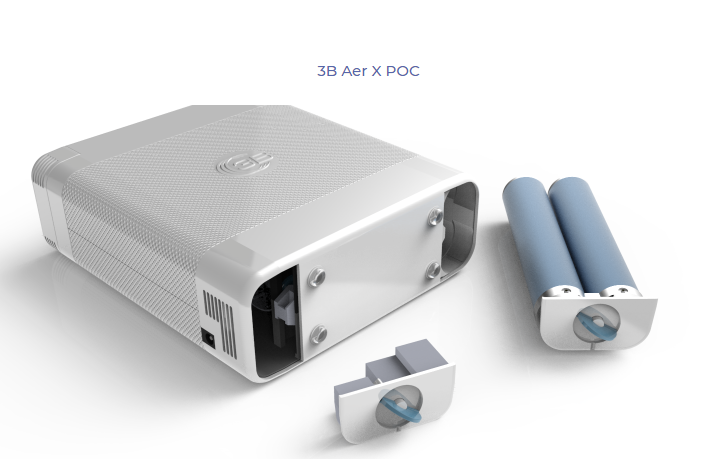

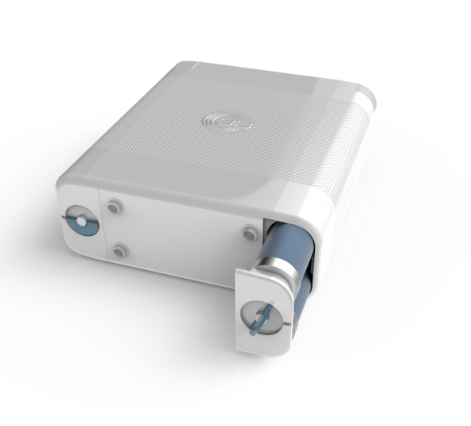

• Patient Changeable Sieve Bed Cartridges Replaced Yearly or When Oxygen Dips Below 85%
• Auto X Breath Detection To Boost Oxygen
• Noise Output Is 40 Decibels Lower Than Human Conversation
• AC Plug Provides 24/7 Operation Capability
• Pulse Volume Delivers 1,100 cc/Minute 20% More Than Competition
• Operating the AEX Inside the Carry Case Adds Venting, Storage, and Convenience
• Magnetic Cannula Port Ensures Sealing and Purity and Detaches if Cannula Gets Caught
• FAA-Approved for In-Flight Operation

Performance

• Pulse Dose Settings: 1-5
• Bolus Output Flow: 1050 mL/Minute
• Oxygen Concentration: 87 to 94% at All 5 Settings
• Lithium-Ion Battery Duration/Charging: 4 Hours at Setting 2
• Charging Time: 3 Hours
• Operating Altitude: 0-10,000 Feet (0 to 3,048 Meters)

Operation

• DC Input: 15 VDC, 5.35A Max
• AC Output: 100 to 240 VAC, 50 to 60 Hz Auto-Sensing: 1.35A
• Noise: 40 dBA
• Warm-Up Time: 2 Minutes

Manufacturer Specifications

• Manufacturer: 3B Medical
• Product Number: AX1000
• Made in the USA
• Weight: 4.25 Pounds, 3.5 Pounds Without Battery
• Warranty: 5 Years (Machine), 1 Year (Sieve Beds and Accessories)

Dimensions:

• Length: 7.22 Inches
• Width: 8.38 Inches
• Height: 2.64 Inches
